MELKIN
MELKIN
Automated storage system
MELKIN, developed within the MELKOV GROUP by our sister company MELKOV s.r.o., represents an advanced automated system for the storage of alternative fuels and other bulk materials. In its standard configuration, it allows for the storage of up to 1,200 m³ of material in a concrete bunker. Special design of MELKIN maximizes space utilization to achieve the highest possible storage capacity.

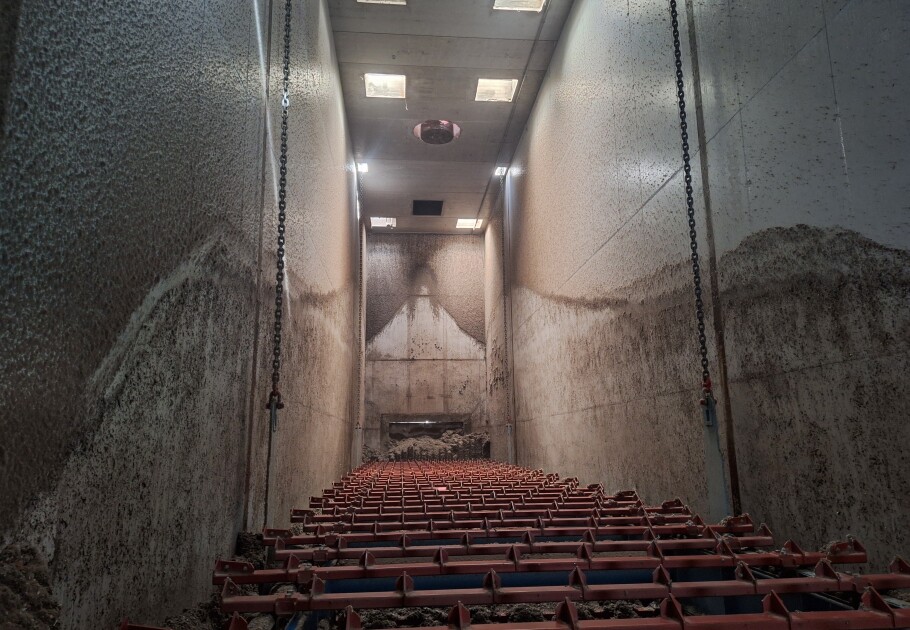

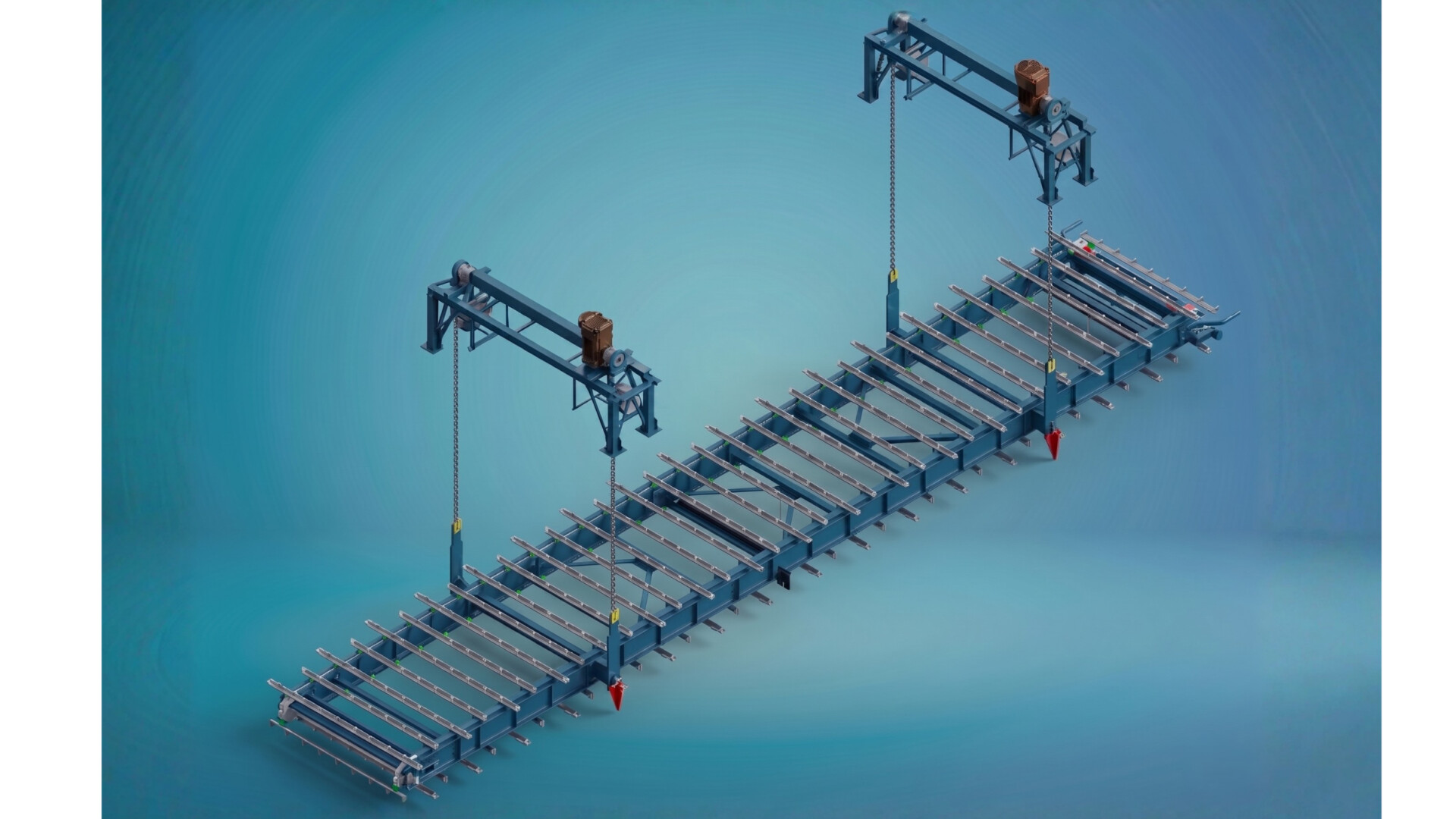

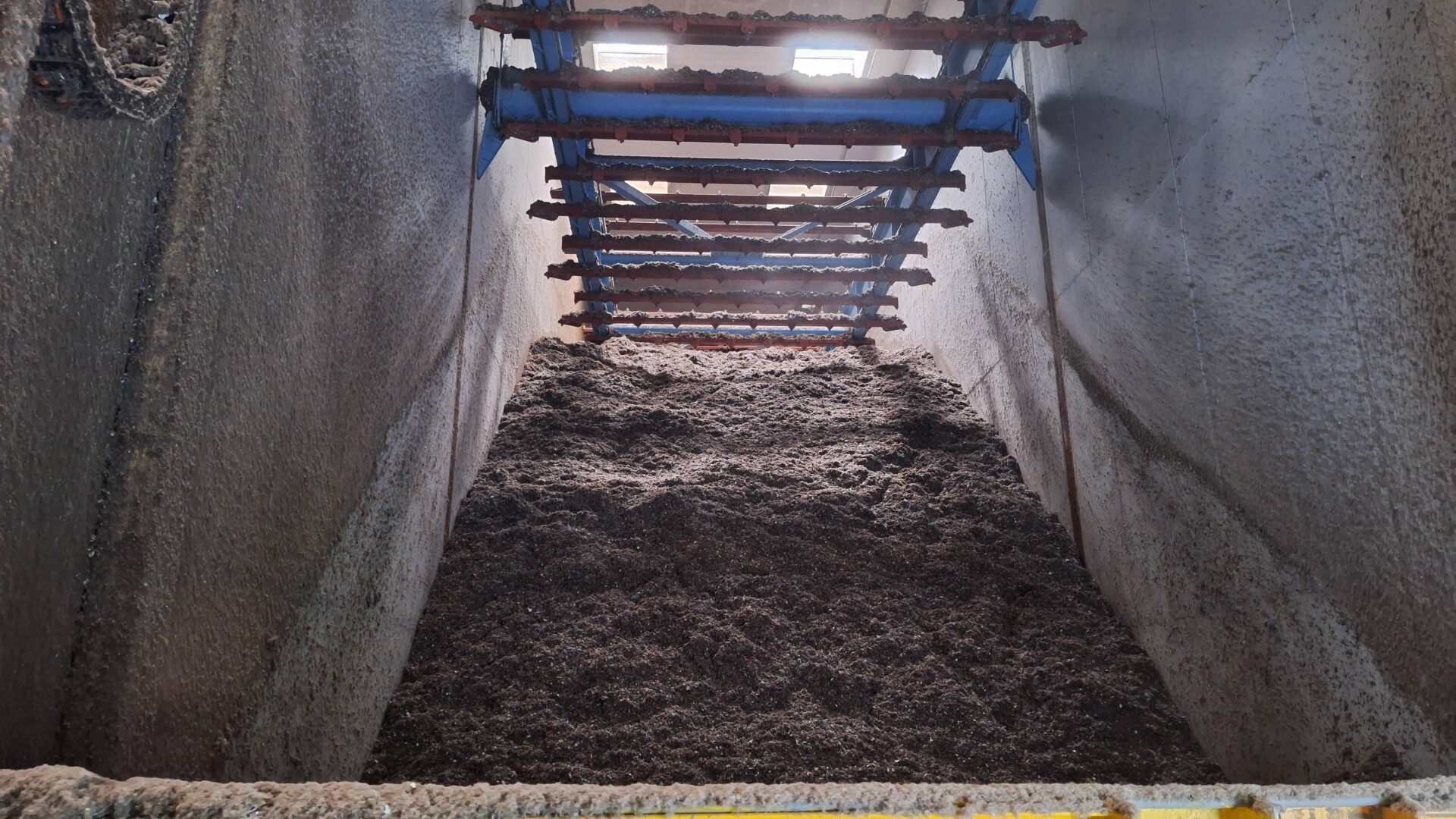

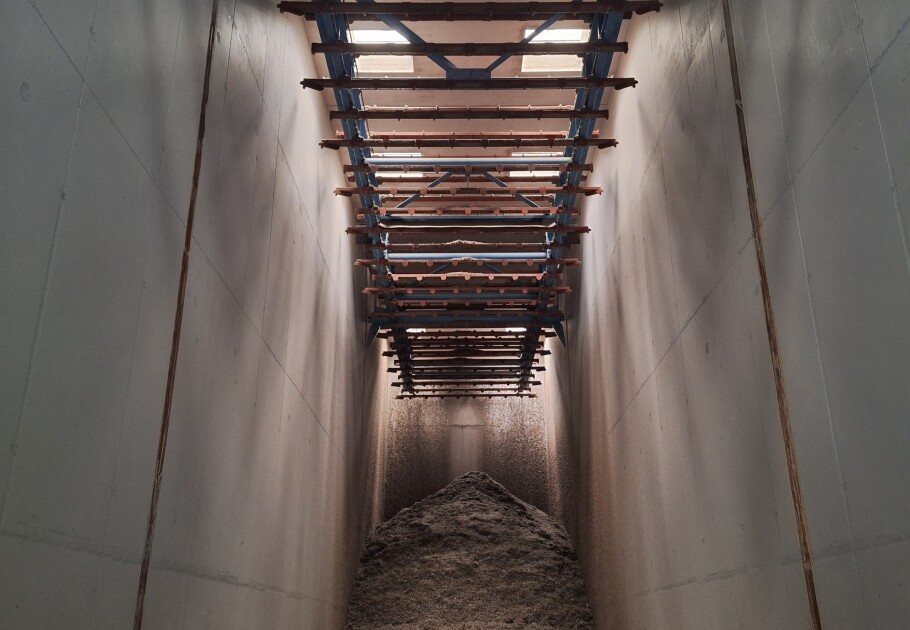

It consists of a reclaimer – a chain conveyor mounted on four high-strength chains that connect it to the hoists. The suspended conveyor ensures material distribution when filling the storage bunker, and during discharge into the downstream technology, it also reclaims the material from the bunker. The lifting mechanism provides the vertical movement of the conveyor during the discharging process into the downstream technology.
Control software is included as standard with the MELKIN system, and the associated hardware can be provided optionally. This was developed in cooperation with SIDAT s.r.o. - a professional partner in the field of control and automation.
MELKIN thus uniquely combines the robustness and durability of its mechanical construction with unparalleled software. This ensures reliable operation across all operating modes and additionally includes intelligent features that allow the equipment to automatically adapt to different materials with varying mechanical properties.
Key advantages
- Maximum utilization of storage space
- Robust and durable construction
- Fully enclosed automated storage without the physical presence of operators
- ATEX-compliant available
- Excellent fire safety properties due to its placement in concreate bunker
- Software with intelligent features for reliable control of all operational modes
